Prevent Boost Leaks Add 13 Hp And 16.6 Lb-ft. Of Tq Improve Throttle Response.

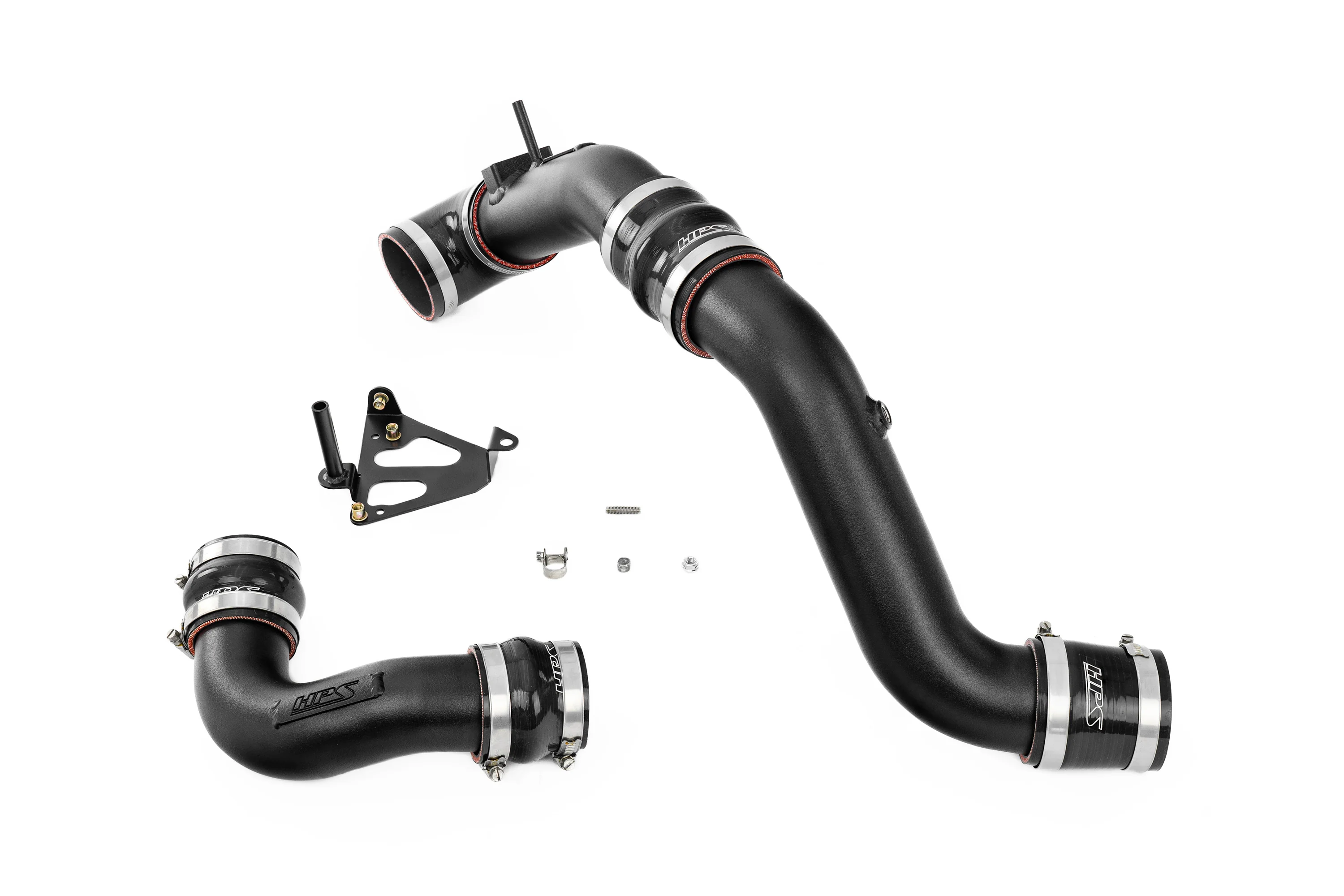

The HPS Performance Charge Pipe Kit, part number 17-133, is a high-quality aftermarket upgrade designed specifically for the Civic Type R. This kit is engineered to replace the factory charge pipe system, providing significant performance improvements for your vehicle. With a larger 2.5-inch diameter on the cold side and a 2.25-inch diameter on the hot side, the enhanced airflow and reduced restriction increases the engine output by 13 horsepower and 16.6 lb-ft of torque, resulting in improved throttle response, acceleration, and overall engine performance. Constructed with durability in mind, the HPS Performance Charge Pipe Kit is made from 6061 mandrel-bent aluminum to withstand high temperatures and pressure levels, delivering long-lasting performance and resistance to cracking or leaking even under the most demanding driving conditions. To facilitate the installation of sensors and other accessories, a 1/8" NPT bung is included into the design of the upper cold-side charge pipe. In addition to the enhanced performance, the HPS Performance Charge Pipe Kit also offers improved reliability. The included 4-ply reinforced oil resistant silicone couplers and embossed stainless steel hose clamps ensure a secure and leak-free connection. These couplers are designed to handle high boost pressures, resist degradation from oil, and provide excellent heat resistance while the stainless steel hose clamps offer a tight fit that prevents slipping or loosening. This kit is designed to be a direct bolt-on replacement, making installation straightforward and hassle-free. All the necessary hardware and components are included, ensuring a proper and secure fit. With its larger diameter charge pipes, durable construction, and included oil resistant silicone couplers and stainless steel hose clamps, this kit offers improved throttle response, increased horsepower, and a more exhilarating drive with the HPS Performance Charge Pipe Kit installed in your Civic Type R.

• Improves acceleration with dyno proven gains up to 13 horsepower and 16.6 lb-ft. of torque without retuning the ECU.
• Replaces and upgrades your stock intercooler piping with high flow aluminum tubing.
• 2.5" cold side and 2.25" hot side mandrel-bent aluminum tubing for optimized air flow.
• Minimize the risk of boost leaks while providing better throttle response and acceleration.

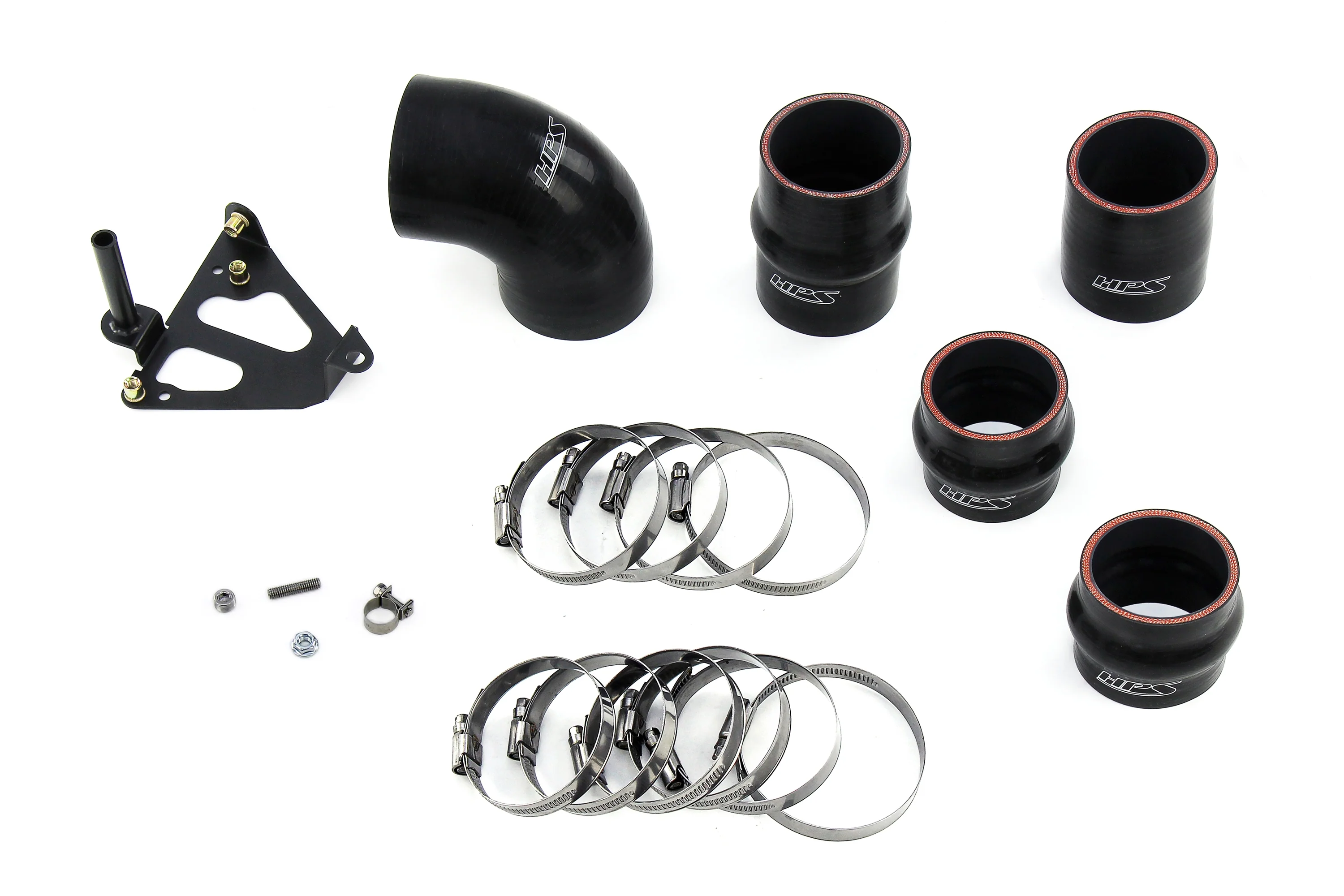

• Includes HPS 4-ply silicone couplers and 100% stainless steel embossed clamps.
• Replaces OEM PN: 17282-5BF-A01, 17292-5BF-A01, 17294-5BF-A00, 17295-RPY-G01.

Attributes:

• Brand Name: HPS Performance
• GTIN: 00648044912660
• Clamps Included: Yes
• Cold Side Lower Pipe End 1 Outside Diameter: 2.5
• Cold Side Lower Pipe End 2 Outside Diameter: 2.5
• Cold Side Upper Pipe End 1 Outside Diameter: 2.5
• Cold Side Upper Pipe End 2 Outside Diameter: 2.75
• Coupler Color: Black
• Coupler Material: Fluorolined Silicone
• Hot Side Pipe End 1 Outside Diameter: 2.25
• Hot Side Pipe End 2 Outside Diameter: 2.25
• Pipe Color: Black
• Pipe Material: Aluminum

Extended Information:

• Country of Origin: CN
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 6 x 10 x 16 inches
• Weight: 5 lb
