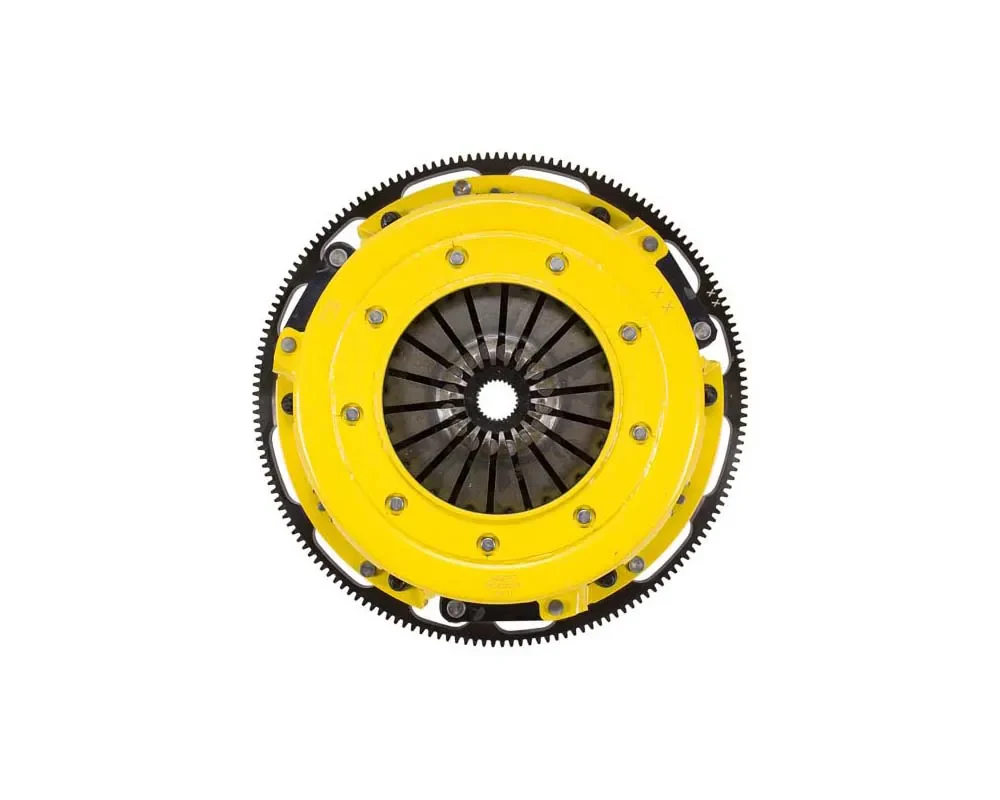

Advanced Clutch Twin Disc HD Street Kit | (T1S-G01)

Advanced Clutch Twin Disc HD Street Kit T1S-G01 street, twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits endure an exclusive four-stage, heat-treating process on all diaphragms. The ACT twin disc kits features the ability to adjust for disc wear and provides equal disengagement for discs. The Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. ACT twin disc kits include a pressure plate, two discs, a floater, flywheel and alignment tool. Some kits may include a pilot bearing and release bearing.

• Includes ACT Prolite flywheel.

• Light pedal effort, smooth engagement, OE to mild gear rattle
• Disc surfaces doubled for better wear, heat capacity and longer life, further extended by ACT's exclusive diaphragm design
• Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade
• Recommended for high horsepower street or race use
• 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Flywheel Included: Yes
• Pilot Bushing Included: No
• Release Bearing Included: No
• Clutch Disc Diameter: 10.5 in
• Clutch Disc Diameter: 267 mm
• Disc Material: Organic
• Input Spline Quantity: 26
• Input Shaft Diameter: 1.125 in
• Alignment Tool Included: Yes
• Disc Type Sprung Solid: Solid
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: No
• Product Weight (lbs.): 41.1
• SFI: 1.2
• Torque Capacity (ft/lbs.): 891
• Torque Capacity Over OE: 0.86

References

• Installation Instructions



Applications

• 2014 Chevrolet Camaro Z/28
• 2015 Chevrolet Camaro Z/28
• 1997 Chevrolet Corvette Base
• 1998 Chevrolet Corvette Base
• 1998 Chevrolet Corvette Indianapolis 500 Pace Car
• 1999 Chevrolet Corvette Base
• 2000 Chevrolet Corvette Base
• 2001 Chevrolet Corvette Base
• 2001 Chevrolet Corvette Z06
• 2002 Chevrolet Corvette Base
• 2002 Chevrolet Corvette Z06
• 2003 Chevrolet Corvette 50th Anniversary Edition
• 2003 Chevrolet Corvette 50th Anniversary Edition Pace Car
• 2003 Chevrolet Corvette Base
• 2003 Chevrolet Corvette Z06
• 2004 Chevrolet Corvette Base
• 2004 Chevrolet Corvette Z06
• 2005 Chevrolet Corvette Base
• 2006 Chevrolet Corvette Base
• 2006 Chevrolet Corvette Z06
• 2007 Chevrolet Corvette Base
• 2007 Chevrolet Corvette Z06
• 2008 Chevrolet Corvette 427 Limited Edition Z06
• 2008 Chevrolet Corvette Base
• 2008 Chevrolet Corvette Z06
• 2009 Chevrolet Corvette Base
• 2009 Chevrolet Corvette Z06
• 2010 Chevrolet Corvette Base
• 2010 Chevrolet Corvette Base
• 2010 Chevrolet Corvette Base
• 2010 Chevrolet Corvette Grand Sport
• 2010 Chevrolet Corvette Grand Sport
• 2010 Chevrolet Corvette Z06
• 2011 Chevrolet Corvette Base
• 2011 Chevrolet Corvette Base
• 2011 Chevrolet Corvette Base
• 2011 Chevrolet Corvette Grand Sport
• 2011 Chevrolet Corvette Grand Sport
• 2011 Chevrolet Corvette Z06
• 2011 Chevrolet Corvette Z06 Carbon
• 2012 Chevrolet Corvette Base
• 2012 Chevrolet Corvette Base
• 2012 Chevrolet Corvette Grand Sport
• 2012 Chevrolet Corvette Grand Sport
• 2012 Chevrolet Corvette Z06
• 2013 Chevrolet Corvette 427
• 2013 Chevrolet Corvette Base
• 2013 Chevrolet Corvette Base
• 2013 Chevrolet Corvette Grand Sport
• 2013 Chevrolet Corvette Grand Sport
• 2013 Chevrolet Corvette Z06
• 2006 Chevrolet Trailblazer SS
• 2004 Pontiac GTO Base
• 2005 Pontiac GTO Base
• 2006 Pontiac GTO Base
• 2010 Chevrolet Camaro SS
• 2011 Chevrolet Camaro 1SS
• 2011 Chevrolet Camaro 2SS
• 2011 Chevrolet Camaro SS
• 2012 Chevrolet Camaro 1SS
• 2012 Chevrolet Camaro 2SS
• 2012 Chevrolet Camaro SS
• 2013 Chevrolet Camaro SS
• 2014 Chevrolet Camaro SS
• 2015 Chevrolet Camaro SS
