ACT HD/Race Rigid 6 Pad Clutch Kit | Multiple Fitments (NX1-HDR6)

HD/Race Rigid 6 Pad Clutch Kit

NX1-HDR6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

• Torque Capacity (ft/lbs.): 305
• Torque Capacity Over OE: 97%
• Disc Type: Race Disc
• Spline Count: 24
• Spline Size (in.): 1
• Disc Diameter (in.): 8.8
• Disc Diameter (mm.): 224
• Pressure Plate Type: Heavy Duty
• Recommended for race use only

Applications

• 1995-1997 Nissan 240SX Base
• 1997-1998 Nissan 240SX LE
• 1989-1990, 1995-1998 Nissan 240SX SE
• 1989-1991 Nissan 240SX XE
• 1975-1978 Nissan 280Z
• 1979-1983 Nissan 280ZX
• 1982-1984 Nissan Maxima GL
• 1981 Nissan Maxima SL

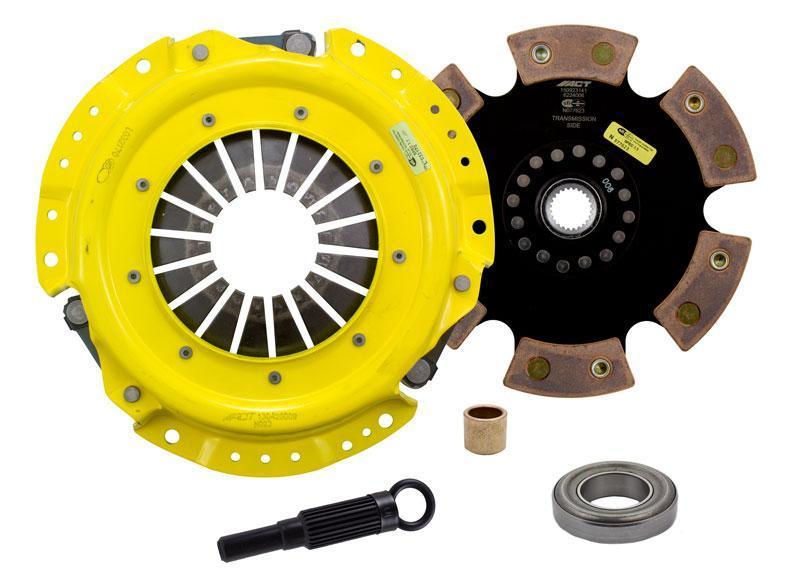

What's In The Box?

• 6224006
• AT01
• N023
• PB1012
• RB016

Warranty

• One (1) Year from Retail Purchase

Downloads

• Installation Instructions
