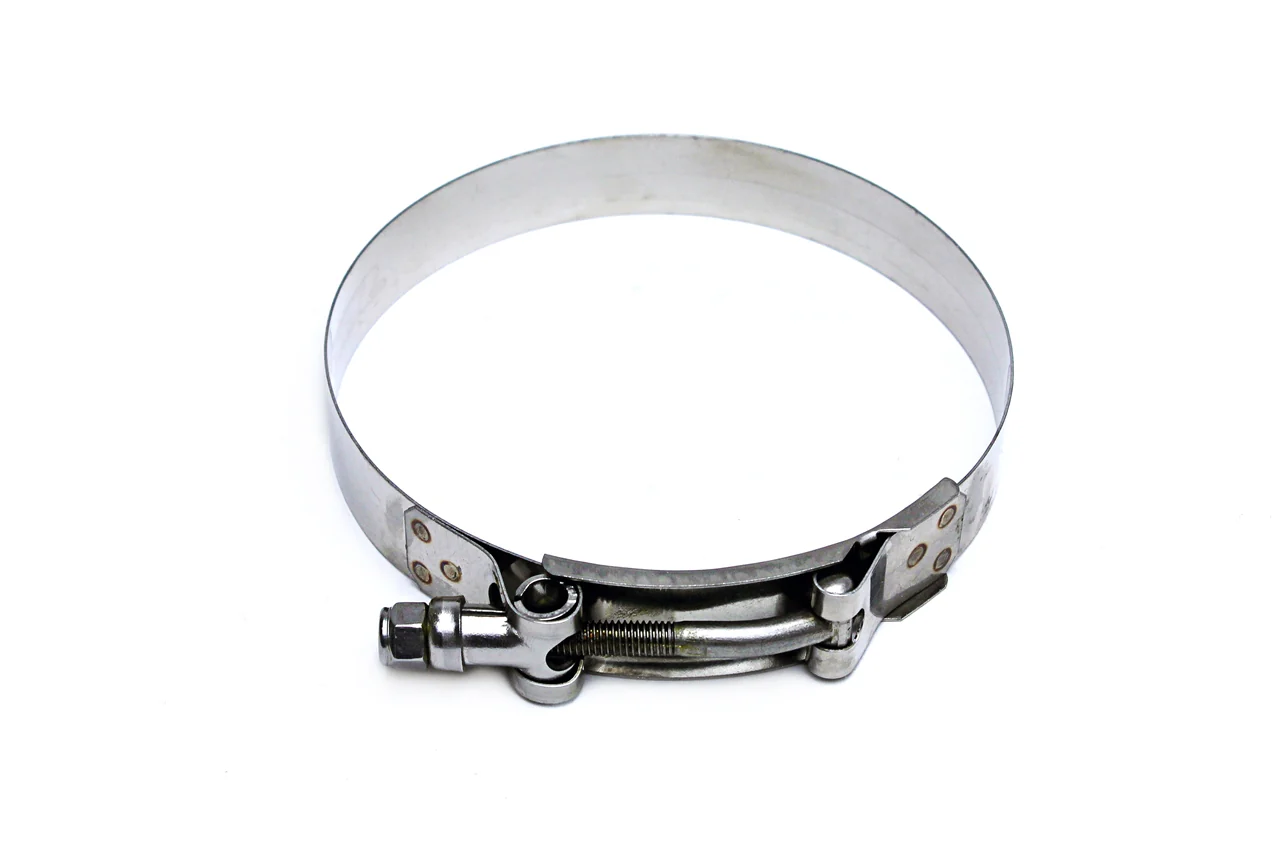

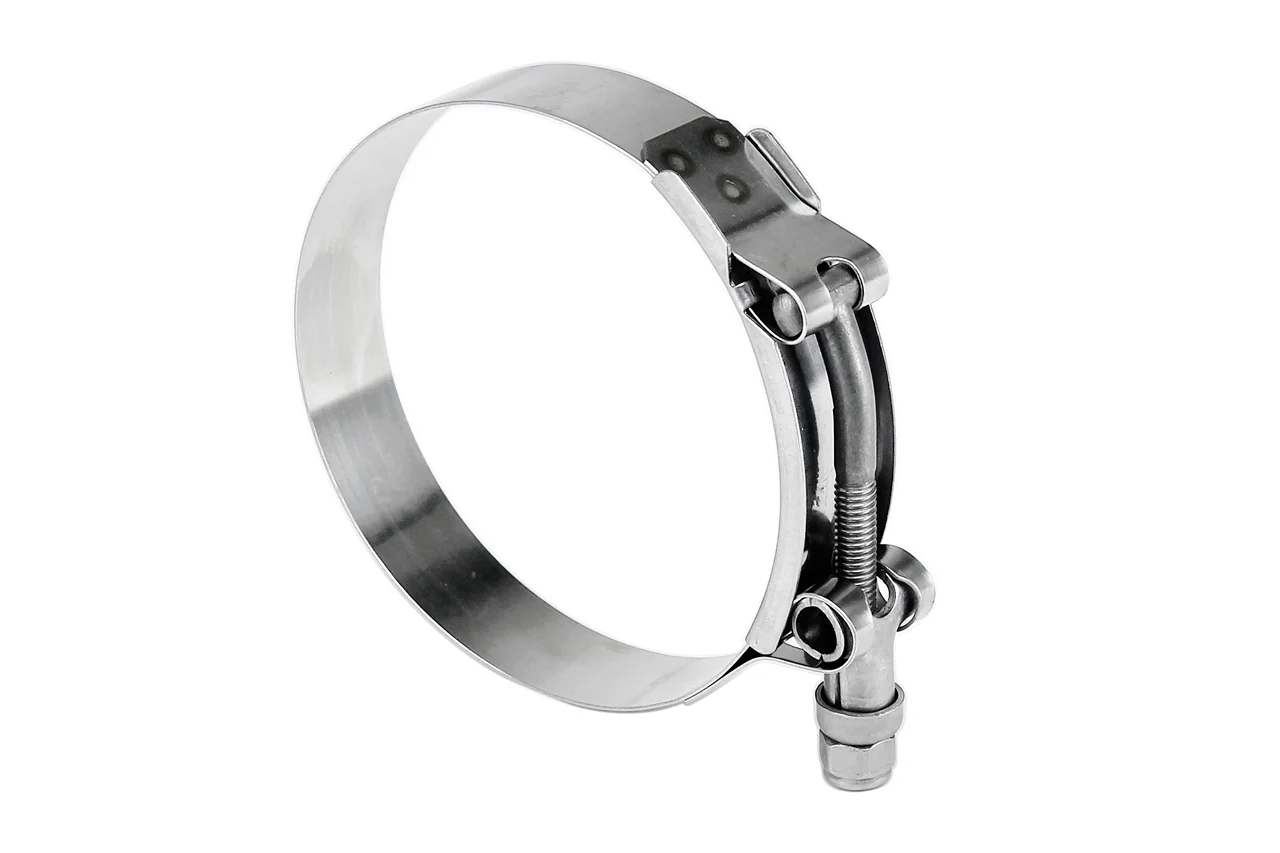

100% Marine Grade Stainless Steel T-Bolt Hose Clamp Size #236 Range:8.25"- 8.56"

therefore 316 tbolt clamps are commonly used to provide leak-proof connections on marine engine and exhaust systems. Fits HPS silicone hose with 8" (200mm) inside diameter. It is recommended that two clamps be used on each end of a wet exhaust installation. Professionals also utilize the high strength 316 T Bolt clamps in applications such as water treatment and sewage systems, military, filter bags, telecommunication devices, sanitary systems, food and pharmaceutical processing equipment. Technical Specification: Effective size range: 8.25" - 8.56" (210mm-218mm). SAE # 236. 100% marine grade 316 Stainless Steel Band, Bolt and Nut. High strength with superior welded construction. Meets or exceeds SAE Spec. J1508 for T-Bolt clamps. 3/4" Band Width. Max. Torque Spec 75 in. lbs.

• 100% marine grade 316 stainless steel band, bolt and nut. High strength superior welded construction.
• Perform well in saltwater applications and offer better corrosion resistance than 304 T-bolt band clamp. Meets or exceeds SAE Spec. J1508 for T-Bolt clamps.
• Effective range: 8.25" - 8.56" (210mm-218mm). SAE # 236.
• Floating bridge and rolled edges to protect soft hoses. 3/4 inch (19mm) band width.
• Maximum Torque Spec 75 in. lbs. Recommed to use two clamps for wet exhaust application.

Attributes:

• Brand Name: HPS Performance
• GTIN: 00648044881188
• Effective Diameter Range: 210-218
• Recommend to be used on HPS Hoses with these INSIDE Diameter: 8" (200mm)

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 4 x 10 x 10 inches
• Weight: 0.74 lb
